If '→' denotes increasing order of intensity, then the meaning of the words [dry → arid → parched] is analogous to [diet → fast → ________ ]. Which one of the given options is appropriate to fill the blank?

If two distinct non-zero real variables $x$ and $y$ are such that $(x+ y)$ is proportional to $(x-y)$ then the value of $\frac{x}{y}$

Consider the following sample of numbers: 9, 18, 11, 14, 15, 17, 10, 69, 11, 13. The median of the sample is

The number of coins of ₹1, ₹5, and ₹10 denominations that a person has are in the ratio 5:3:13. Of the total amount, the percentage of money in ₹5 coins is

For positive non-zero real variables $p$ and $q$, if $\log(p^2 + q^2) = \log p+ \log q+ 2 \log 3$, then, the value of $\frac{p^4+q^4}{p^2q^2}$ is

In the given text, the blanks are numbered (i)−(iv). Select the best match for all the blanks. Steve was advised to keep his head ___(i)___ before heading ___(ii)___ to bat; for, while he had a head ___(iii)___ batting, he could only do so with a cool head ___(iv)___ his shoulders.

A rectangular paper sheet of dimensions 54 cm × 4 cm is taken. The two longer edges of the sheet are joined together to create a cylindrical tube. A cube whose surface area is equal to the area of the sheet is also taken. Then, the ratio of the volume of the cylindrical tube to the volume of the cube is

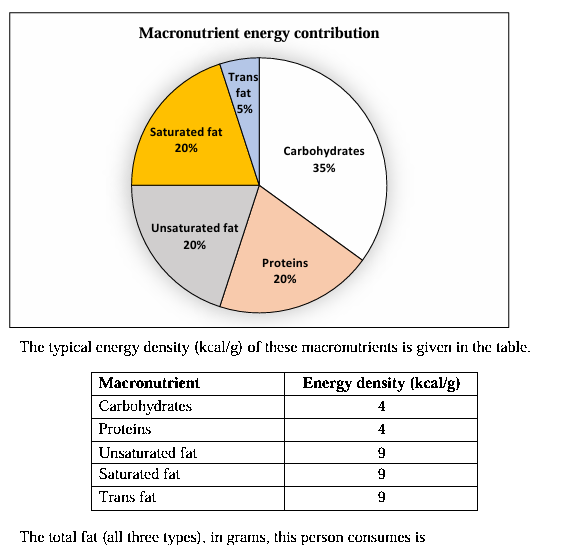

The pie chart presents the percentage contribution of different macronutrients to a typical 2,000 kcal diet of a person.

A rectangular paper of 20 cm × 8 cm is folded 3 times. Each fold is made along the line of symmetry, which is perpendicular to its long edge. The perimeter of the final folded sheet (in cm) is

The least number of squares to be added in the figure to make AB a line of symmetry is

Let $f: \mathbb{R} \to \mathbb{R}$ be a function such that $f(x) = \max\{x, x^3\}$, $x\in\mathbb{R}$, where $\mathbb{R}$ is the set of all real numbers. The set of all points where $f(x)$ is NOT differentiable is

The product of all eigenvalues of the matrix $\begin{bmatrix} 1 & 2 & 3 \\ 4 & 5 & 6 \\ 7 & 8 & 9 \end{bmatrix}$ is

Consider a system that uses 5 bits for representing signed integers in 2's complement format. In this system, two integers $A$ and $B$ are represented as $A=01010$ and $B=11010$. Which one of the following operations will result in either an arithmetic overflow or an arithmetic underflow?

Consider a permutation sampled uniformly at random from the set of all permutations of {1, 2, 3, ⋯, $n$} for some $n \geq 4$. Let $X$ be the event that 1 occurs before 2 in the permutation, and $Y$ the event that 3 occurs before 4. Which one of the following statements is TRUE?

Which one of the following statements is FALSE?

A user starts browsing a webpage hosted at a remote server. The browser opens a single TCP connection to fetch the entire webpage from the server. The webpage consists of a top-level index page with multiple embedded image objects. Assume that all caches (e.g., DNS cache, browser cache) are all initially empty. The following packets leave the user's computer in some order.
(i) HTTP GET request for the index page
(ii) DNS request to resolve the web server's name to its IP address
(iii) HTTP GET request for an image object
(iv) TCP SYN to open a connection to the web server.
Which one of the following is the CORRECT chronological order (earliest in time to latest) of the packets leaving the computer?

Given an integer array of size N, we want to check if the array is sorted (in either ascending or descending order). An algorithm solves this problem by making a single pass through the array and comparing each element of the array only with its adjacent elements. The worst-case time complexity of this algorithm is

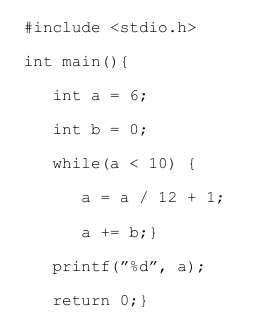

Consider the following C program:Which one of the following statements is CORRECT?

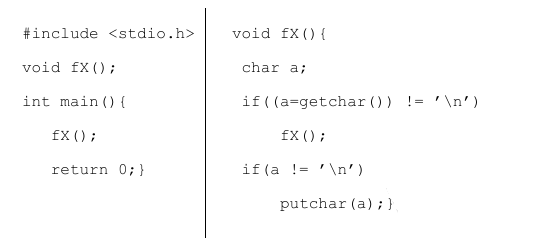

Consider the following C program:
Assume that the input to the program from the command line is 1234 followed by a newline character. Which one of the following statements is CORRECT?

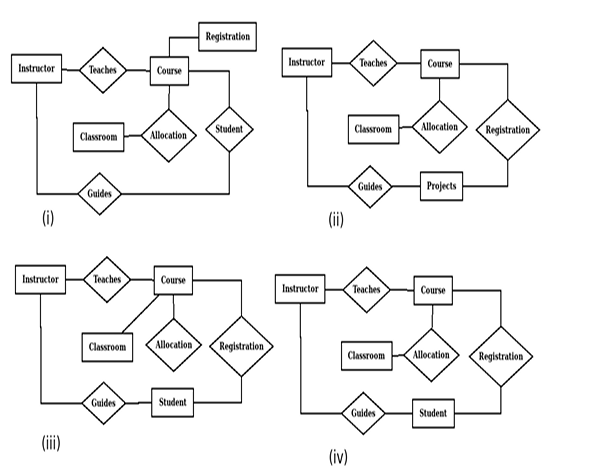

Let S be the specification: "Instructors teach courses. Students register for courses. Courses are allocated classrooms. Instructors guide students." Which one of the following ER diagrams CORRECTLY represents S?

In a B+ tree, the requirement of at least half-full (50%) node occupancy is relaxed for which one of the following cases?

Which of the following statements about a relation R in first normal form (1NF) is/are TRUE?

Let $L_1$, $L_2$ be two regular languages and $L_3$ a language which is not regular. Which of the following statements is/are always TRUE?

Which of the following statements about threads is/are TRUE?

Which of the following process state transitions is/are NOT possible?

Which of the following is/are Bottom-Up Parser(s)?

Let $A$ and $B$ be two events in a probability space with $P(A) = 0.3$, $P(B) = 0.5$, and $P(A\cap B) = 0.1$. Which of the following statements is/are TRUE?

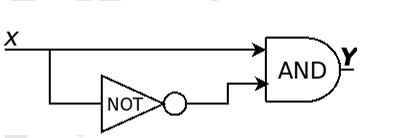

Consider the circuit shown below where the gates may have propagation delays. Assume that all signal transitions occur instantaneously and that wires have no delays. Which of the following statements about the circuit is/are CORRECT?

TCP client P successfully establishes a connection to TCP server Q. Let $N_P$ denote the sequence number in the SYN sent from P to Q. Let $N_Q$ denote the acknowledgement number in the SYN ACK from Q to P. Which of the following statements is/are CORRECT?

Consider a 5-stage pipelined processor with Instruction Fetch (IF), Instruction Decode (ID), Execute (EX), Memory Access (MEM), and Register Writeback (WB) stages. Which of the following statements about forwarding is/are CORRECT?

Which of the following fields is/are modified in the IP header of a packet going out of a network address translation (NAT) device from an internal network to an external network?

Let $A$ and $B$ be non-empty finite sets such that there exist one-to-one and onto functions (i) from $A$ to $B$ and (ii) from $A\times A$ to $A\cup B$. The number of possible values of |$A$| is __________

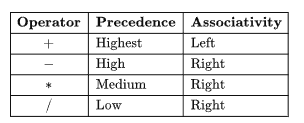

Consider the operator precedence and associativity rules for the integer arithmetic operators given in the table below. The value of the expression 3 + 1 + 5 ∗ 2 / 7 + 2 − 4 − 7 − 6 / 2 as per the below rules is __________

The number of spanning trees in a complete graph of 4 vertices labelled A, B, C, and D is __________

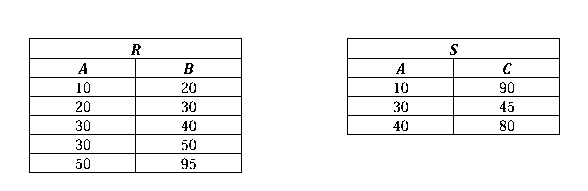

Consider the following two relations, R(A,B) and S(A,C): The total number of tuples obtained by evaluating the following expression $\sigma_{B<C}(R\bowtie_{R.A=S.A}S)$ is __________

Consider a network path P—Q—R between nodes P and R via router Q. Node P sends a file of size $10^6$ bytes to R via this path by splitting the file into chunks of $10^3$ bytes each. Node P sends these chunks one after the other without any wait time between the successive chunk transmissions. Assume that the size of extra headers added to these chunks is negligible, and that the chunk size is less than the MTU. Each of the links P—Q and Q—R has a bandwidth of $10^6$ bits/sec, and negligible propagation latency. Router Q immediately transmits every packet it receives from P to R, with negligible processing and queueing delays. Router Q can simultaneously receive on link P—Q and transmit on link Q—R. Assume P starts transmitting the chunks at time $t= 0$. Which one of the following options gives the time (in seconds, rounded off to 3 decimal places) at which R receives all the chunks of the file?

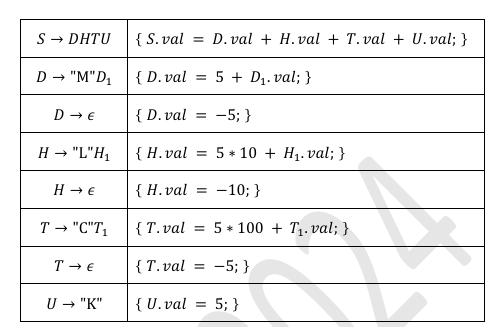

Consider the following syntax-directed definition (SDD). Given "MMLK" as the input, which one of the following options is the CORRECT value computed by the SDD (in the attribute $S.val$)?

An array [82, 101, 90, 11, 111, 75, 33, 131, 44, 93] is heapified. Which one of the following options represents the first three elements in the heapified array?

Consider the following recurrence relation: $T(n)=\begin{cases}\sqrt{n}\,T(\sqrt{n})+n, & \text{for } n\ge 1, \\ 1, & \text{for } n=1.\end{cases}$. Which one of the following options is CORRECT?

Consider a binary min-heap containing 105 distinct elements. Let $k$ be the index (in the underlying array) of the maximum element stored in the heap. The number of possible values of $k$ is

The symbol → indicates functional dependency in the context of a relational database. Which of the following options is/are TRUE?

Let $G$ be a directed graph and $T$ a depth first search (DFS) spanning tree in $G$ that is rooted at a vertex $v$. Suppose $T$ is also a breadth first search (BFS) tree in $G$, rooted at $v$. Which of the following statements is/are TRUE for every such graph $G$ and tree $T$?

Consider the following read-write schedule $S$ over three transactions $T_1$, $T_2$, and $T_3$, where the subscripts in the schedule indicate transaction IDs:
$S: r_1(z); w_1(z); r_2(x); r_3(y); w_3(y); r_2(y); w_2(x); w_2(y);$.
Which of the following transaction schedules is/are conflict equivalent to $S$?

Consider a Boolean expression given by $F(X, Y, Z) = \sum(3,5,6,7)$. Which of the following statements is/are CORRECT?

Let $A$ be any $n\times m$ matrix, where $m > n$. Which of the following statements is/are TRUE about the system of linear equations $Ax= 0$?

Consider the 5-state DFA $M$ accepting the language $L(M) \subset (0 + 1)^*$ shown below. For any string $w\in (0 + 1)^*$ let $n_0(w)$ be the number of 0's in $w$ and $n_1(w)$ be the number of 1's in $w$. Which of the following statements is/are FALSE?

The chromatic number of a graph is the minimum number of colours used in a proper colouring of the graph. Let $G$ be any graph with $n$ vertices and chromatic number $k$. Which of the following statements is/are always TRUE?

Consider the operators ◊ and □ defined by $a◊b= a+ 2b$, $a□b= ab$, for positive integers. Which of the following statements is/are TRUE?

Consider two set-associative cache memory architectures: WBC, which uses the write back policy, and WTC, which uses the write through policy. Both of them use the LRU (Least Recently Used) block replacement policy. The cache memory is connected to the main memory. Which of the following statements is/are TRUE?

Consider a 512 GB hard disk with 32 storage surfaces. There are 4096 sectors per track and each sector holds 1024 bytes of data. The number of cylinders in the hard disk is __________

The baseline execution time of a program on a 2 GHz single core machine is 100 nanoseconds (ns). The code corresponding to 90% of the execution time can be fully parallelized. The overhead for using an additional core is 10 ns when running on a multicore system. Assume that all cores in the multicore system run their share of the parallelized code for an equal amount of time. The number of cores that minimize the execution time of the program is __________

A given program has 25% load/store instructions. Suppose the ideal CPI (cycles per instruction) without any memory stalls is 2. The program exhibits 2% miss rate on instruction cache and 8% miss rate on data cache. The miss penalty is 100 cycles. The speedup (rounded off to two decimal places) achieved with a perfect cache (i.e., with NO data or instruction cache misses) is __________

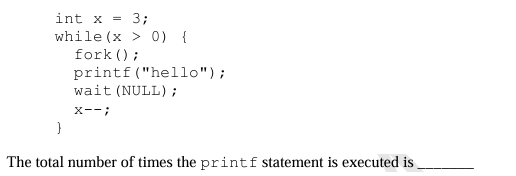

Consider the following code snippet using the fork() and wait() system calls. Assume that the code compiles and runs correctly, and that the system calls run successfully without any errors.

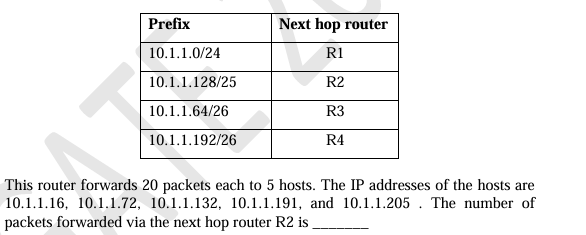

Consider the entries shown below in the forwarding table of an IP router. Each entry consists of an IP prefix and the corresponding next hop router for packets whose destination IP address matches the prefix. The notation "/N" in a prefix indicates a subnet mask with the most significant N bits set to 1.

Let $G = (V, \Sigma, S, P)$ be a context-free grammar in Chomsky Normal Form with $\Sigma = \{a, b, c\}$ and $V$ containing 10 variable symbols including the start symbol $S$. The string $w = a^{30}b^{30}c^{30}$ is derivable from $S$. The number of steps (application of rules) in the derivation $S\to^* w$ is __________

The number of edges present in the forest generated by the DFS traversal of an undirected graph $G$ with 100 vertices is 40. The number of connected components in $G$ is __________

Consider the following two regular expressions over the alphabet {0,1}:
$r= 0^*+ 1^*$,
$s= 01^*+ 10^*$.
The total number of strings of length less than or equal to 5, which are neither in $r$ nor in $s$, is __________

Consider a memory management system that uses a page size of 2 KB. Assume that both the physical and virtual addresses start from 0. Assume that the pages 0, 1, 2, and 3 are stored in the page frames 1, 3, 2, and 0, respectively. The physical address (in decimal format) corresponding to the virtual address 2500 (in decimal format) is __________

A bag contains 10 red balls and 15 blue balls. Two balls are drawn randomly without replacement. Given that the first ball drawn is red, the probability (rounded off to 3 decimal places) that both balls drawn are red is __________

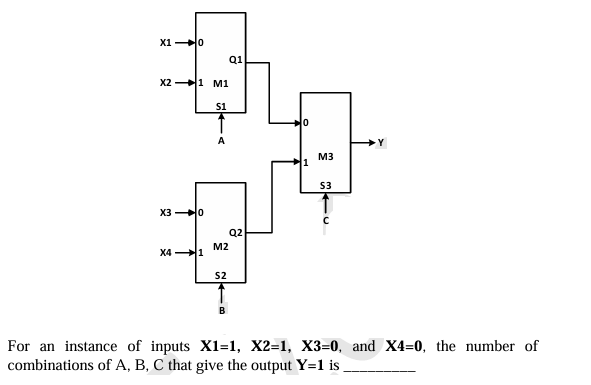

Consider a digital logic circuit consisting of three 2-to-1 multiplexers M1, M2, and M3 as shown below. X1 and X2 are inputs of M1. X3 and X4 are inputs of M2. A, B, and C are select lines of M1, M2, and M3, respectively.

Consider sending an IP datagram of size 1420 bytes (including 20 bytes of IP header) from a sender to a receiver over a path of two links with a router between them. The first link (sender to router) has an MTU (Maximum Transmission Unit) size of 542 bytes, while the second link (router to receiver) has an MTU size of 360 bytes. The number of fragments that would be delivered at the receiver is __________
